NintendoIn productionReleased October 8, 2021[3]
Nintendo

Nintendo Switch – OLED Model

The same Switch hardware with a bigger 7-inch 720p OLED screen, 64 GB of storage, a wide adjustable stand and a dock with a LAN port. Performance is unchanged from the original Switch.

Display
7″ OLED
1280 × 720
Chip
NVIDIA custom Tegra processor
Memory
Unknown
Battery
4310 mAh
Weight
420 g
With Joy-Con attached; console alone about 320 g
Compare with Switch 2Official spec sheet
1 / 2
1 / 2 · Image: Nintendo

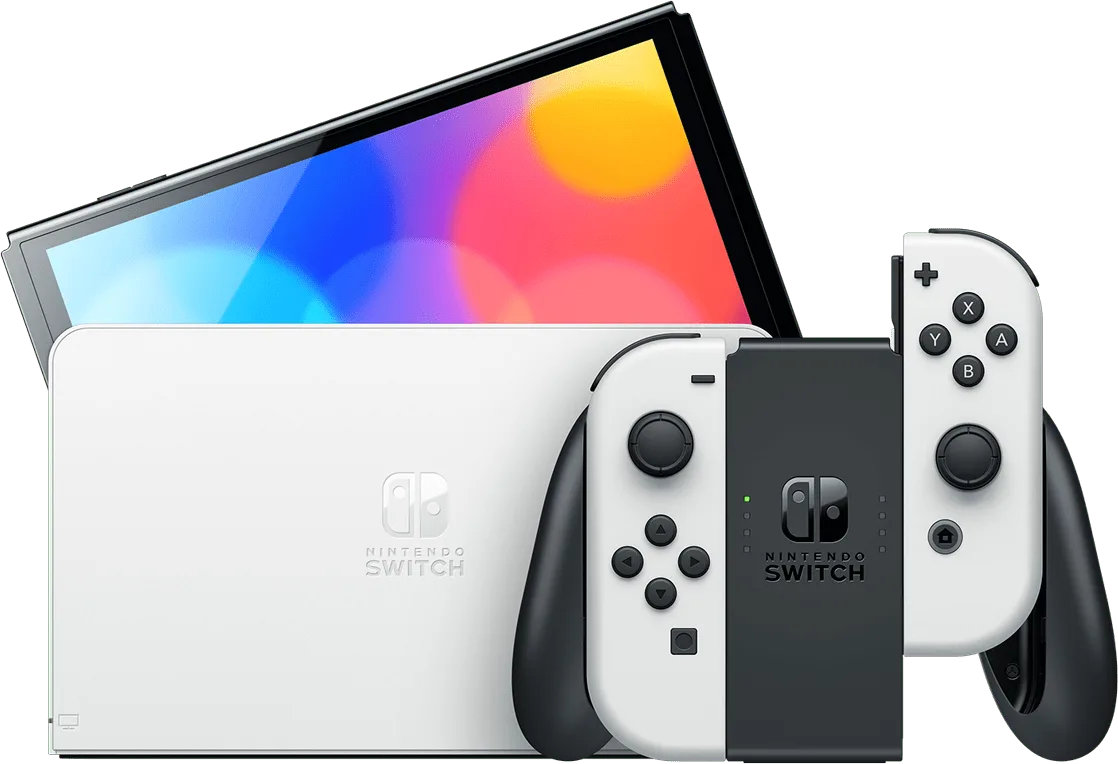

Nintendo Switch OLED Model front view with white Joy-Con attached

Nintendo Switch OLED Model front view with white Joy-Con attached

Image: NintendoChecked October 22, 2026

Models & list prices

Manufacturer list prices (MSRP), not retail offers.

ModelLaunch (USD)Current list (USD)
HEG-001, 64 GB$349.99[3]$399.99[4]since August 3, 2025

Chip & performance

SpecificationValue
Chip (SoC)NVIDIA custom Tegra processor[1]
Process nodeNot published
CPUNot published
CPU cores / threadsNot published
CPU clockNot published
GPUNot published
GPU coresNot published
GPU clockNot published
Power range (TDP)Not published

Memory & storage

SpecificationValue
RAMNot published
RAM typeNot published
RAM speedNot published
Storage64 GB[1]
Storage typeNot published
microSD slotYes[1]microSD, microSDHC and microSDXC

Display

SpecificationValue
Screen size7″[1]
Resolution1280 × 720[1]
Refresh rateNot published
PanelOLED[1]
Peak brightnessNot published
Variable refresh (VRR)Not published
HDRNot published
TouchscreenYes[1]

Battery & build

SpecificationValue
BatteryNot published
Battery (mAh)4310 mAh[1]Nintendo quotes about 4.5–9 hours; about 3 hours to charge in sleep mode
ChargingNot published
Weight420 g[1]With Joy-Con attached; console alone about 320 g
Dimensions242 × 102 × 13.9 mm[1]With Joy-Con attached; 28.4 mm deep at the sticks

Connectivity & software

SpecificationValue
Wi-FiWi-Fi 5 (802.11 a/b/g/n/ac)[1]
BluetoothBluetooth 4.1[1]
PortsUSB-C (charging, dock) · 3.5 mm headset jack · Game card slot · microSD slot[1]
Operating systemNintendo Switch system software[1]
ControlsDetachable Joy-Con (L) and (R) · HD rumble · Accelerometer and gyroscope[1]

Sources

Each value above links to the source it was taken from. Last checked October 22, 2026. Spotted an error? Tell us.

  1. [1]Nintendo Switch OLED model console [HEG-001] specifications · Nintendo (Singapore)manufacturer · read October 22, 2026
  2. [2]Nintendo Switch systems · Nintendo of Americamanufacturer · read October 22, 2026
  3. [3]Nintendo Switch OLED Announced, Out This October 8, Trailer & Box Art & More Revealed · MP1st, July 6, 2021news · read October 22, 2026
  4. [4]Nintendo Announces Switch Pricing Changes Starting August 3, 2025 · The Outerhaven, August 1, 2025news · read October 22, 2026
  5. [5]Nintendo raises original Switch prices in the U.S. following Nintendo Switch 2 launch · GosuGamers, August 1, 2025news · read October 22, 2026
