PC handheldsIn productionReleased October 16, 2025[3]
ASUS

ASUS ROG Xbox Ally

The cheaper of the two 2025 Xbox Ally models: a 4-core Ryzen Z2 A, 16 GB of LPDDR5 and a 7-inch 1080p 120 Hz IPS screen in the same Xbox-style grips, with a 60 Wh battery.

Display
7″ 120 Hz IPS LCD
1920 × 1080
Chip
AMD Ryzen Z2 A
4 / 8 cores / threads
About this chip →
Memory
16 GB
LPDDR5
Battery
60 Wh
65 W charger
Weight
670 g
Compare with ROG Xbox Ally XOfficial spec sheet
1 / 8
1 / 8 · Image: ASUS

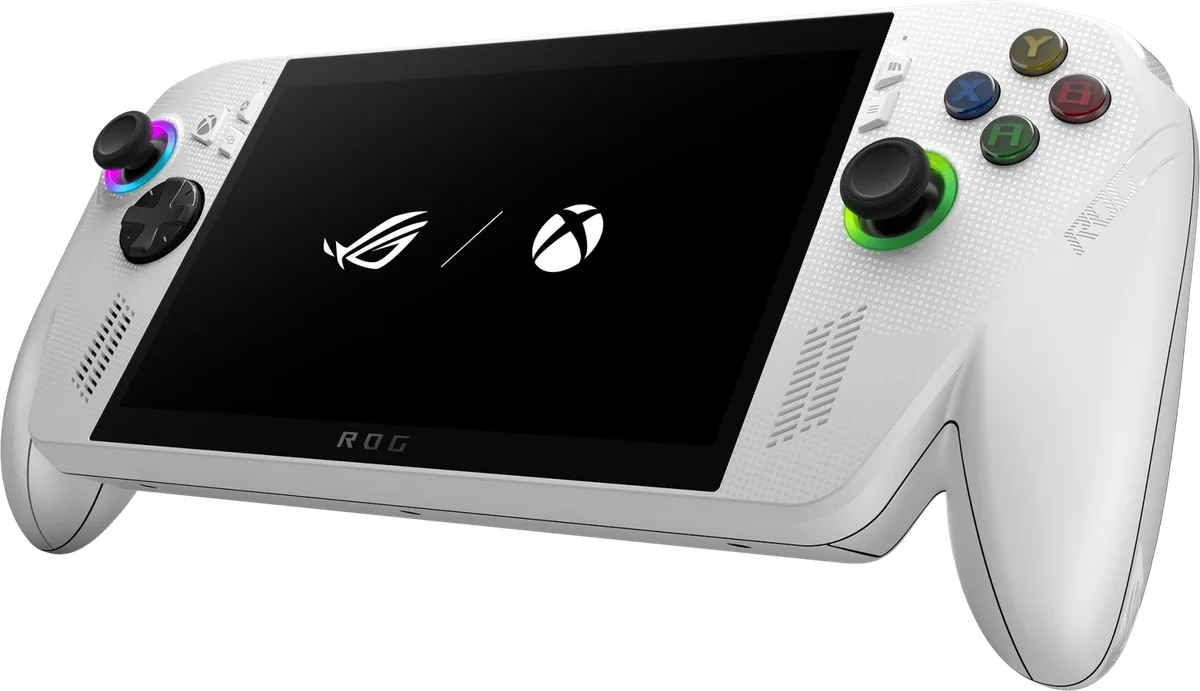

ROG Xbox Ally front view: white shell with a 7-inch screen between the grips

ROG Xbox Ally front view: white shell with a 7-inch screen between the grips

Image: ASUSChecked October 22, 2026

Models & list prices

Manufacturer list prices (MSRP), not retail offers.

ModelLaunch (USD)Current list (USD)
16 GB / 512 GB$599.99[3]No change on file

Chip & performance

SpecificationValue
Chip (SoC)AMD Ryzen Z2 A[1]
Process nodeNot published
CPUAMD Ryzen Z2 A, 6 MB cache[1]
CPU cores / threads4 / 8[1]
CPU clock2.8–3.8 GHz[1]
GPUIntegrated AMD Radeon[1]
GPU cores8 CUs[4]
GPU clock1.8 GHz[4]Chip maximum from the chip maker; the device may run lower.
Power range (TDP)6–20 W[4]The chip's configurable range from the chip maker; the device sets its own limits within it.

Memory & storage

SpecificationValue
RAM16 GB[1]
RAM typeLPDDR5, soldered, dual channel[1]
RAM speed6400 MT/s[1]
Storage512 GB[1]
Storage typeM.2 2280 PCIe 4.0 NVMe[1]
microSD slotYes[1]

Display

SpecificationValue
Screen size7″[1]
Resolution1920 × 1080[1]
Refresh rate120 Hz[1]
PanelIPS LCD[1]
Peak brightness500 nits[1]
Variable refresh (VRR)Yes[1]AMD FreeSync Premium
HDRNot published
TouchscreenYes[1]

Battery & build

SpecificationValue
Battery60 Wh[1]
Battery (mAh)Not published
Charging65 W[1]
Weight670 g[1]
Dimensions290 × 121 × 50.9 mm[1]Depth is 27.5 mm at the screen and 50.9 mm at the grips.

Connectivity & software

SpecificationValue
Wi-FiWi-Fi 6E, tri-band 2x2[1]
BluetoothBluetooth 5.4[1]
Ports2× USB 3.2 Gen 2 Type-C (DisplayPort, power delivery) · UHS-II microSD reader · 3.5 mm combo jack[1]
Operating systemWindows 11 Home[1]
ControlsHall effect analog triggers · Two full-size thumbsticks · ABXY, D-pad, bumpers · Two assignable grip buttons · HD haptics · 6-axis gyro · Fingerprint sensor[1]

Sources

Each value above links to the source it was taken from. Last checked October 22, 2026. Spotted an error? Tell us.

  1. [1]ROG Xbox Ally (2025) RC73YA specifications · ASUS ROGmanufacturer · read October 22, 2026
  2. [2]ROG Xbox Ally (2025) official gallery · ASUS ROGmanufacturer · read October 22, 2026
  3. [3]ROG Xbox Ally and Ally X pricing revealed at TGS 2025 · The Outerhaven, September 25, 2025news · read October 22, 2026
  4. [4]AMD Ryzen Z2 A specifications · AMDmanufacturer · read October 22, 2026
