PC handheldsIn productionReleased October 15, 2026[2]
ASUS

ASUS ROG Xbox Ally X20

ROG's 20th-anniversary take on the Xbox Ally X: the same Ryzen AI Z2 Extreme, 24 GB and 80 Wh battery, but with a 7.4-inch 1080p 120 Hz OLED screen rated for 1400 nits HDR, TMR sticks and a translucent black-and-gold shell.

Display
7.4″ 120 Hz OLED
1920 × 1080
Chip
AMD Ryzen AI Z2 Extreme
8 / 16 cores / threads
About this chip →
Memory
24 GB
LPDDR5X
Battery
80 Wh
68 W charger
Weight
756 g
Compare with ROG Xbox Ally XOfficial spec sheet
1 / 8
1 / 8 · Image: ASUS

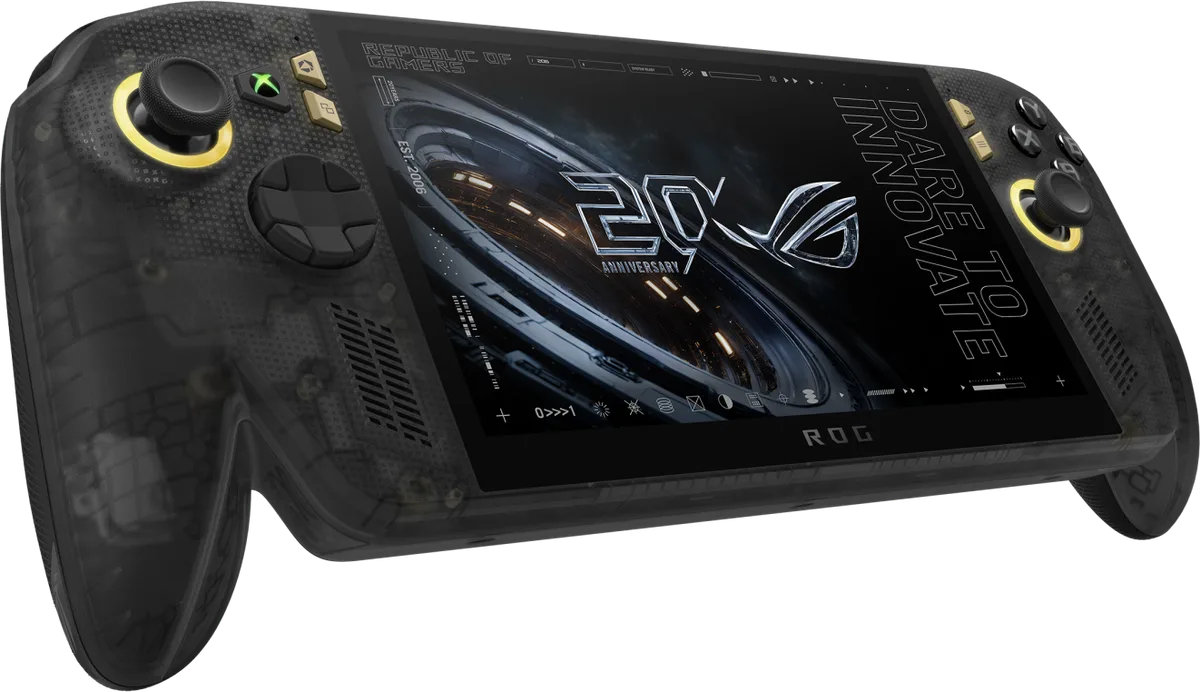

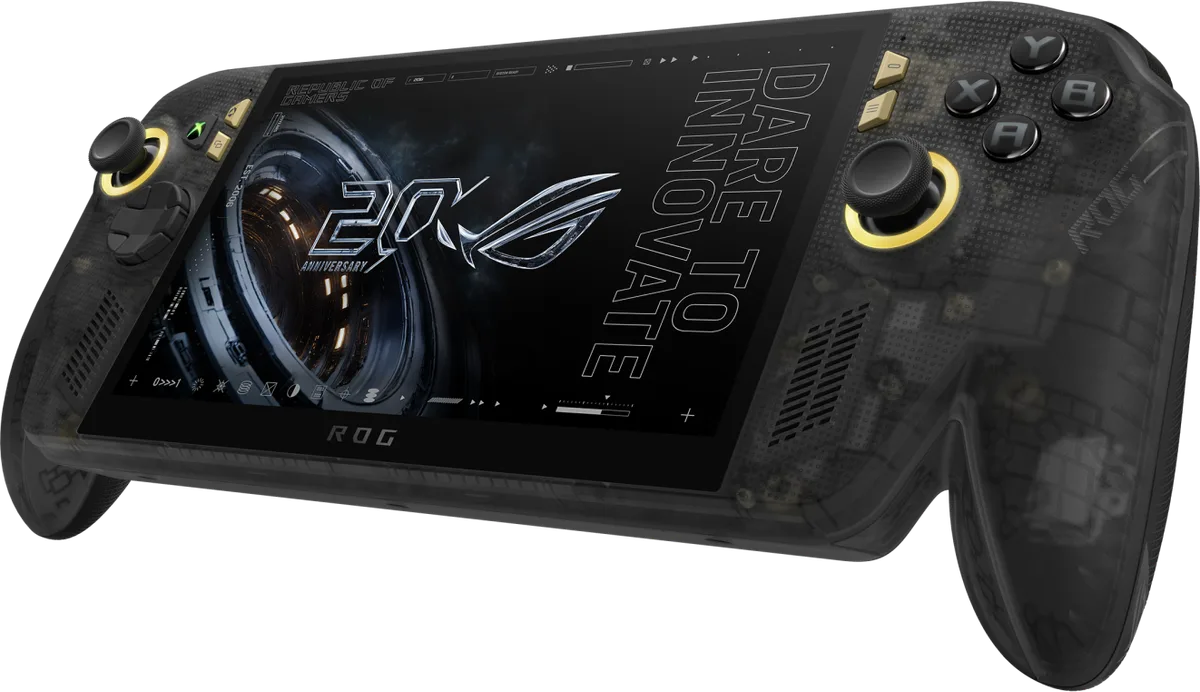

ROG Xbox Ally X20 front view: 7.4-inch OLED screen, gold-ringed sticks and translucent black shell

ROG Xbox Ally X20 front view: 7.4-inch OLED screen, gold-ringed sticks and translucent black shell

Image: ASUSChecked October 22, 2026

Models & list prices

Manufacturer list prices (MSRP), not retail offers.

ModelLaunch (USD)Current list (USD)
24 GB / 1 TB$1,299.99[1]No change on file

Chip & performance

SpecificationValue
Chip (SoC)AMD Ryzen AI Z2 Extreme[1]
Process nodeNot published
CPUAMD Ryzen AI Z2 Extreme, 24 MB cache, XDNA NPU up to 50 TOPS[1]
CPU cores / threads8 / 16[1]
CPU clock2–5 GHz[1]
GPUAMD Radeon (RDNA 3.5)[4]
GPU cores16 CUs[4]
GPU clock2.9 GHz[4]Chip maximum from the chip maker; the device may run lower.
Power range (TDP)15–35 W[4]The chip's configurable range from the chip maker; the device sets its own limits within it.

Memory & storage

SpecificationValue
RAM24 GB[1]
RAM typeLPDDR5X, dual channel[1]
RAM speedNot published
Storage1 TB[1]
Storage typePCIe 4.0 NVMe M.2 2280 SSD[1]
microSD slotYes[1]microSD Express (PCIe Gen4 x1); UHS-I DDR200 cards also work

Display

SpecificationValue
Screen size7.4″[1]
Resolution1920 × 1080[1]
Refresh rate120 Hz[1]
PanelOLED[1]100% DCI-P3, anti-reflection coating, Gorilla Glass Victus + DXC
Peak brightness1400 nits[1]HDR peak; 600 nits SDR
Variable refresh (VRR)Yes[1]FreeSync Premium Pro
HDRYes[1]Dolby Vision
TouchscreenYes[1]

Battery & build

SpecificationValue
Battery80 Wh[1]
Battery (mAh)Not published
Charging68 W[1]USB-C adapter; ASUS says inclusion varies by region
Weight756 g[1]
Dimensions300 × 121 × 51.3 mm[1]Thickness 27.5-51.3 mm

Connectivity & software

SpecificationValue
Wi-FiWi-Fi 6E (2x2)[1]
BluetoothBluetooth 5.4[1]
Ports1x USB4 Type-C (Thunderbolt 4 compliant, DisplayPort 2.1, PD 3.0) · 1x USB 3.2 Gen 2 Type-C (DisplayPort, PD) · 3.5 mm audio · microSD Express[1]
Operating systemWindows 11 Home[1]
ControlsTMR sticks with RGB rings · Hall effect triggers with impulse rumble · Transforming D-pad · 2 assignable grip buttons · HD haptics · 6-axis gyro · Fingerprint sensor[1]

Sources

Each value above links to the source it was taken from. Last checked October 22, 2026. Spotted an error? Tell us.

  1. [1]ROG Xbox Ally X20 (2026) specifications · ASUS ROGmanufacturer · read October 22, 2026
  2. [2]The OLED ROG Xbox Ally X20 starts at $1,299 · Shacknews, August 25, 2026news · read October 22, 2026
  3. [3]ROG Xbox Ally X20 (2026) official gallery · ASUS ROGmanufacturer · read October 22, 2026
  4. [4]AMD Ryzen AI Z2 Extreme specifications · AMDmanufacturer · read October 22, 2026
